L Series Fingerprint Lever Handle Lock
SVDLLE001BK · tubular latch · matte black

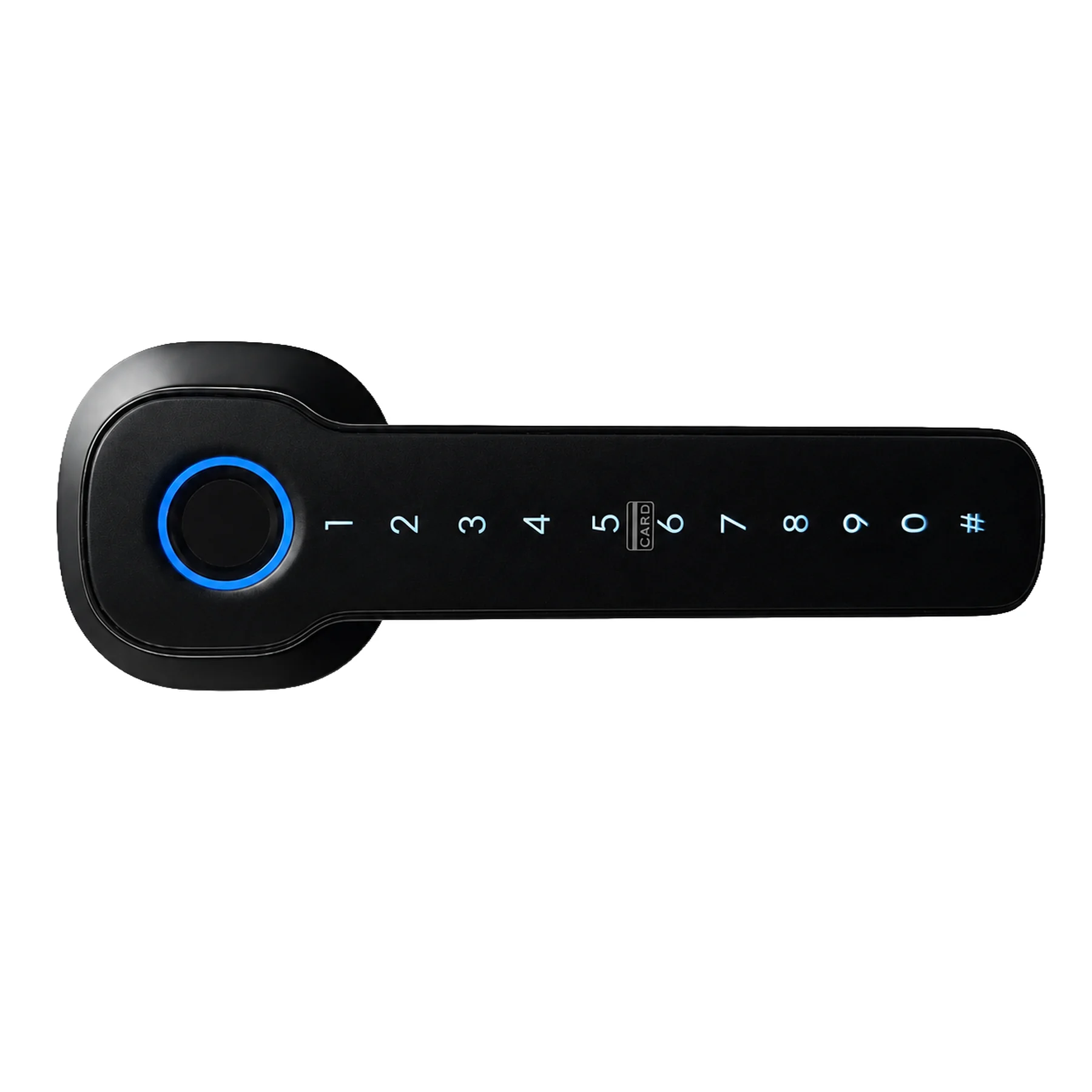

The whole lock is the handle. A fingerprint ring sits at the rose, the digits run down the lever itself, and behind it is a tubular latch rather than a full mortise case — which is exactly why it will go onto a door that was never routed for a digital lock.
Supplied & fitted
RM1,299 is the Smartverse recommended retail price for this model and it includes installation by a verified MyLock technician.
We confirm the fit from a photo before we book anyone
Some doors need extra work — a different backset, a thicker leaf, a frame that needs packing — and that changes the number. Send a photo and we confirm in writing what it costs on your door. No deposit for a quote, and if your door is not worth fitting to, we will tell you.
- Body styleTubular latch — not a mortise deadbolt
- Ways to openFingerprint · PIN keypad · mechanical key
- Best forBedrooms, home offices, internal and secondary doors
- Main entrance doorNot our recommendation — see below
- Retrofit difficultyLowest in the range — no mortise routing
- Suitable for fire doorsNo
- Suitable for exposed outdoor doorsNo
- Independently testedNo test report held for this model
- Warranty2 years, honoured locally
Who is this lock actually for?
It is for the door you did not want to cut. A tubular latch drops into the same round hole an ordinary handle already uses, so fitting it means boring a standard latch prep instead of machining a deep mortise pocket into the leaf.
That makes it the obvious answer for a bedroom, a home office, a store room or a secondary door — and the obvious wrong answer for a front door, which we would rather tell you here than after you have paid. A latch is not a deadbolt.
Why this one fits doors the others cannot
Body style is the thing that decides whether a lock can go on your door at all.
-
1
No mortise pocket neededThe other models want a rectangular pocket routed into the edge of the leaf. This one uses the round cross-bore an ordinary handle already sits in.
-
2
Far less risk to the doorLess cutting means less chance of splitting a hollow-core leaf or weakening a thin one. On a rented unit that matters.
-
3
Everything is in the handleNo separate escutcheon plate top and bottom. On a narrow or glazed door there is simply nowhere for a full panel to sit.
-
4
Quickest fit in the rangeFewer things to line up, so it is the cheapest of the five to install and the least disruptive to live with on the day.
What you give up by choosing a tubular latch
The part nobody selling one of these tends to write down.
So we position it honestly: excellent for convenience and access control on internal and secondary doors, and for keeping a store room or office shut without handing out keys. Not what we would fit on the door between your family and the street. If that is the door you are trying to solve, ask us about the M Series instead.
Where every number on this page came from
Most smart-lock listings mix the manufacturer’s marketing with the seller’s guesswork and label the result a specification. Here is the provenance of ours, line by line, including the gaps.
Provenance for the SVDLLE001BK
-
A
Our own photographsEverything on this page you can see: the fingerprint ring, the keypad on the lever, the privacy button, the tubular latch and its faceplate.
-
B
OEM catalogue — checked, and ruled outWe compared our own photographs against all twelve models in the manufacturer’s 2025 catalogue, page by page. This lock is not one of them. Every model in that range puts the keypad on a separate panel beside the handle; this one has the keypad on the lever itself and no panel at all. So there is no OEM datasheet for us to quote, and that is precisely why the rows below say pending.
-
C
SmartverseThe SKU, the 2-year warranty and the price.
-
—
Nobody has published itDoor thickness, backset, user capacity, network and battery. Not “we have not looked” — we looked, including through the OEM range above, and the figures are not published anywhere we consider quotable. Those rows stay pending until Smartverse sends the datasheet.
Full specification
Everything currently confirmed for the SVDLLE001BK. Rows marked pending are genuinely pending — we would rather leave a gap than fill it with a number from a similar-looking product.
| SKU | SVDLLE001BK |
|---|---|
| Body style | Tubular latch, fingerprint lever handle |
| Finish | Matte black |
| Unlock methods | Fingerprint · PIN touch keypad on the lever · mechanical key |
| Keypad | Backlit 0–9 touch strip along the lever |

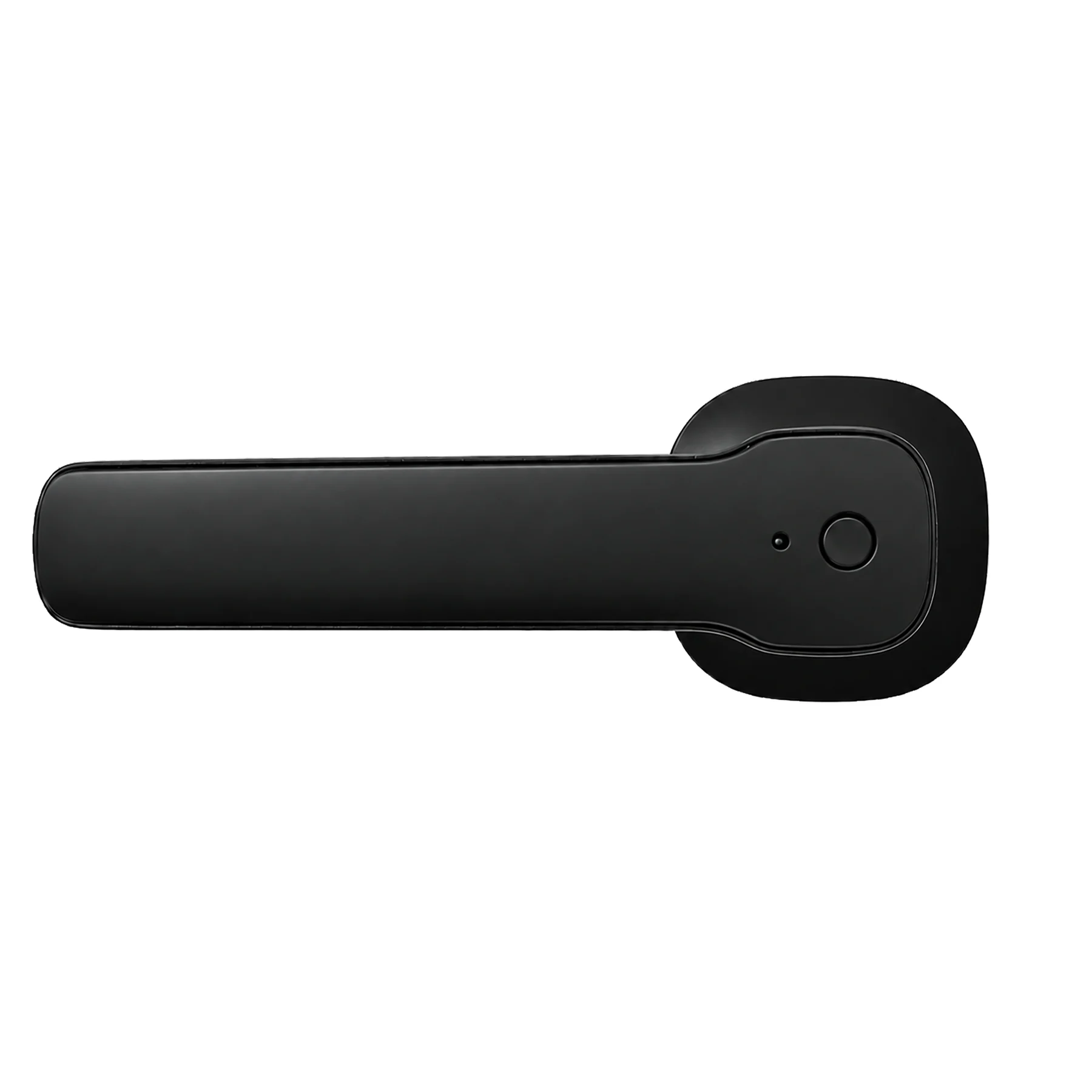

| Interior side | Plain lever with privacy button |

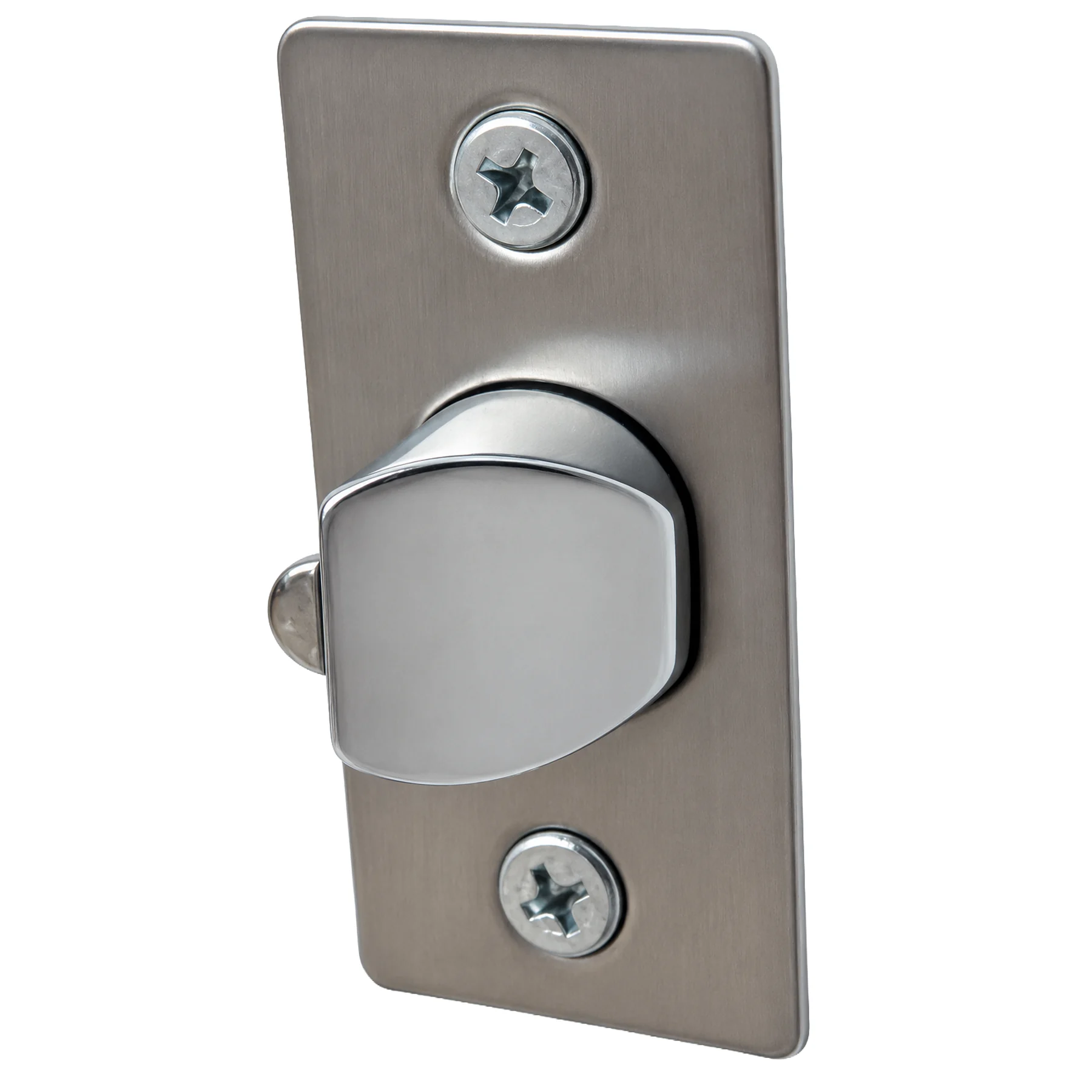

| Latch supplied | Tubular latch with stainless steel faceplate |
| Door thickness | Confirmation pending from Smartverse — we measure before quoting |
| Backset | Confirmation pending from Smartverse |
| App / platform | Smartverse Hub with the Smartverse App · also works with Tuya (these are Tuya-platform locks) |
| Users / network / battery | Confirmation pending from Smartverse |
| Independent test report | None held for this model |
| Warranty | 2 years |
We supply it and we fit it
This is the part most sellers leave to you. On Malaysian forums people ask strangers for an installer contact — because buying the lock was never the hard bit.
-
Before you pay
Feasibility check, then a written price
Send a photo of your door. We confirm the body style fits, and quote supplied-and-fitted in writing before anyone is dispatched. If your door is not worth fitting to, we say so.
- No deposit for a quote
- Price agreed in writing first
- We will tell you when the answer is no
-
On the day
A verified technician, not a first-timer
Every technician on the network is verified before taking jobs. If a job needs a skill we are not confident about, we will not send someone to learn on your door.
- Old lock removed and disposed of
- Set up with your fingerprints and PINs before we leave
- 2-year product warranty, honoured locally
Questions people actually ask about this lock
-
Will it fit my existing door without new holes?
Usually, if your door already has a standard round handle prep. That is the whole point of a tubular latch. Send us a photo of the door edge and the existing handle and we will confirm before anyone is booked.
-
Can I use it on my front door?
You can, but we would rather you did not, and we have written why above: it holds the door with a latch bolt rather than a deadbolt. For a main entrance we recommend the M Series, which is also the only model in the range with an independent test report.
-
What happens if the battery dies?
There is a mechanical key override. Keep that key outside the house — in your car, at a neighbour’s, in your bag — not in the room the lock is protecting.
-
Why do some of the specification rows say “pending”?
Because we have the lock and the photographs, but no datasheet — and we went looking properly before writing that. We checked our photographs against every one of the twelve models in the manufacturer’s 2025 catalogue: this lock is not in it. Every lock in that range has a keypad panel beside the handle, and this one has the keypad on the lever with no panel at all, so its figures are genuinely unpublished rather than merely un-looked-up. We would rather show you the gap than copy numbers off a lock that resembles it. We have asked Smartverse, and this page changes the day they answer.
-
Which app do I install?
The Smartverse App, paired through the Smartverse Hub — the Hub is the gateway hardware, the App is the phone app. These are Tuya-platform locks, so Tuya works too. Note the specification rows above still say pending for this model’s network and battery figures: we have the lock and the app route confirmed, but not yet a published datasheet, and we are not going to invent the numbers.
-
Is it weatherproof?
Not declared, so treat it as an indoor lock. Nothing in this range should go on a fully rain-exposed door.
Send us a photo of your door
It is the fastest way to a real answer. We will tell you which model fits, what it costs supplied and fitted, and whether we think you should buy a different one.
