M Series Semi-Auto Digital Door Lock
SVDLME001BK · also branded CL-M-SV · matte black

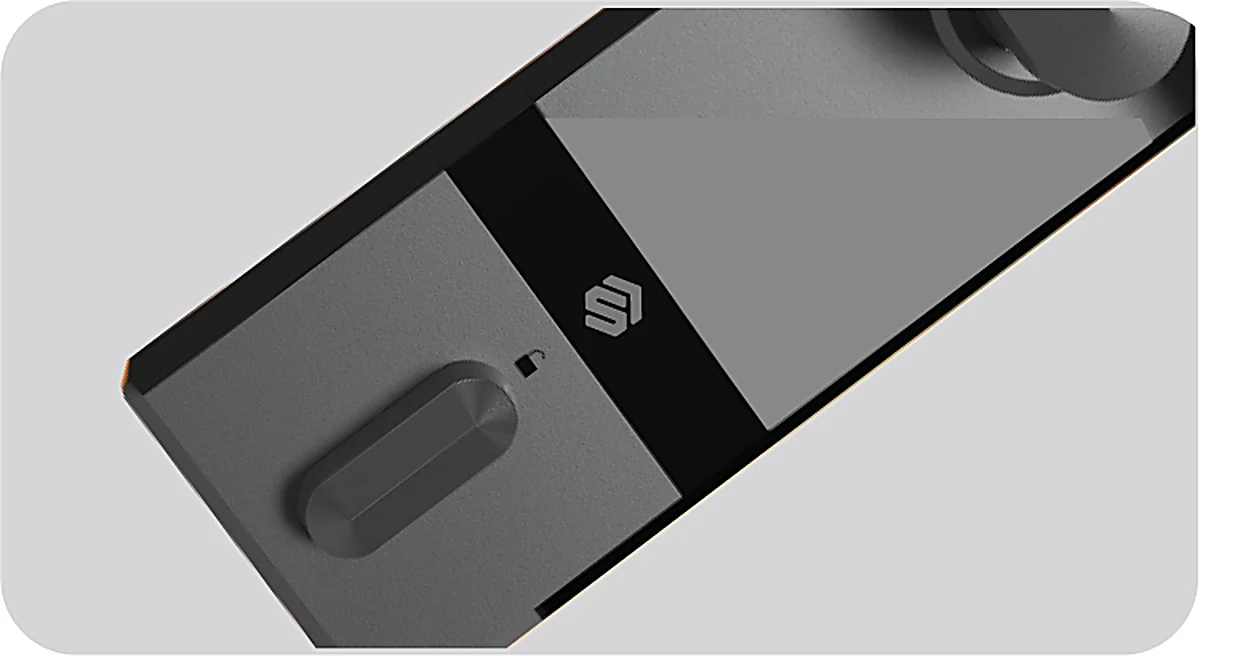

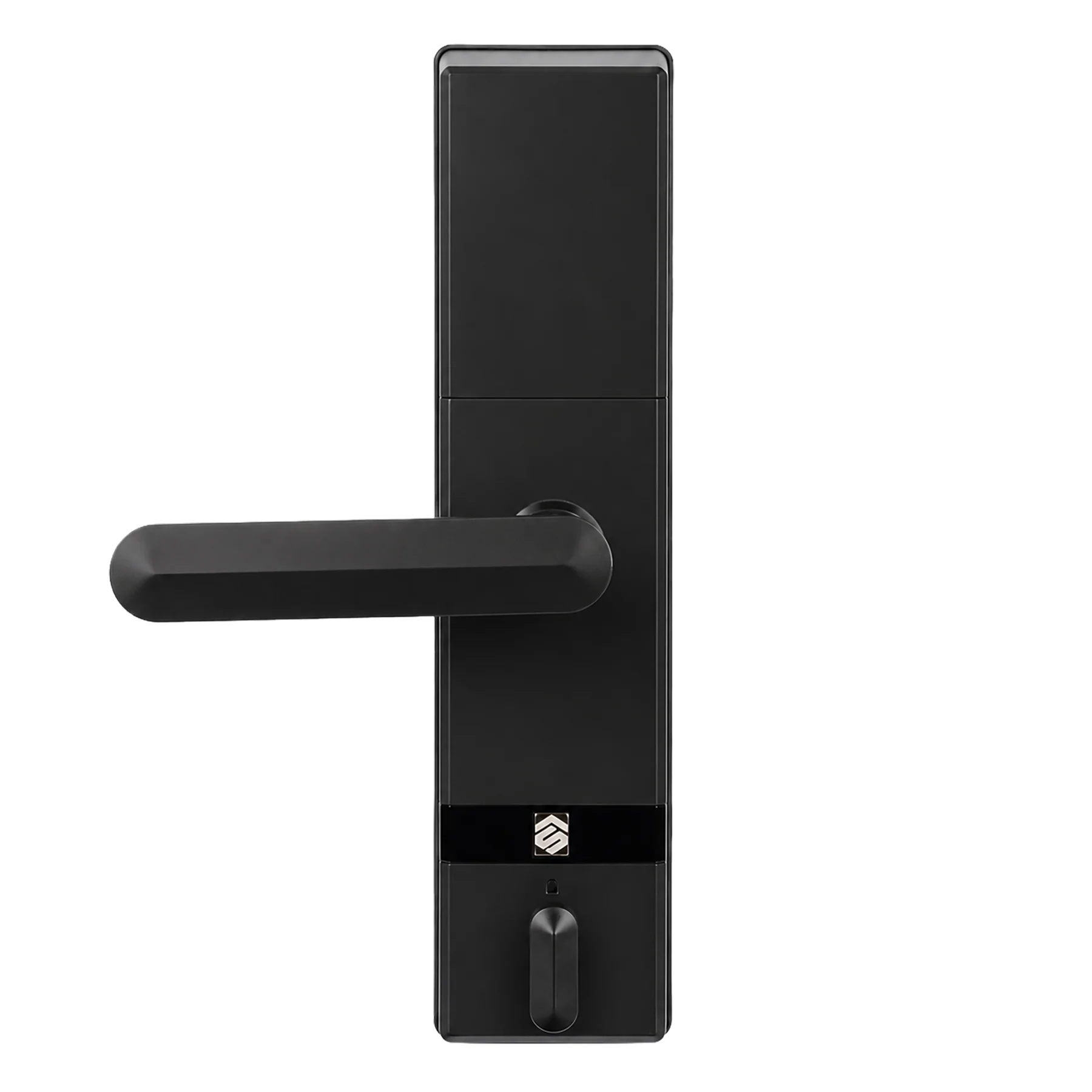

The model we know best, and the one we fit most often — the only one in the range with a published independent test report, which is why we can tell you exactly what it is and is not rated for. Lift the lever to throw the latch; lock it from the app, the keypad or the thumbturn.
Supplied & fitted
RM1,399 is the Smartverse recommended retail price for this model and it includes installation by a verified MyLock technician.
We confirm the fit from a photo before we book anyone
Some doors need extra work — a re-routed mortise, a thicker leaf, a different backset — and that changes the number. Send a photo, we confirm in writing what it will cost on your door. No deposit to get a quote, and if your door is not worth fitting to, we will tell you.
- Fits door thickness35–55 mm
- Backset60 mm or 70 mm (6068 / 7068)
- Ways to openFingerprint · PIN · NFC card · app · mechanical key
- Power4×AA, plus USB-C emergency power
- Independently testedYes — BS EN 14846:2008, SIRIM 2026MA0740
- Suitable for fire doorsNo — Grade 0, not declared
- Suitable for exposed outdoor doorsNo — corrosion Grade 0, not declared
- Suitable for metal grill gatesNo — see the grill guide
- Users300 (9 admin + 291 general)
- Warranty2 years, honoured locally
Will the SVDLME001BK fit my door?

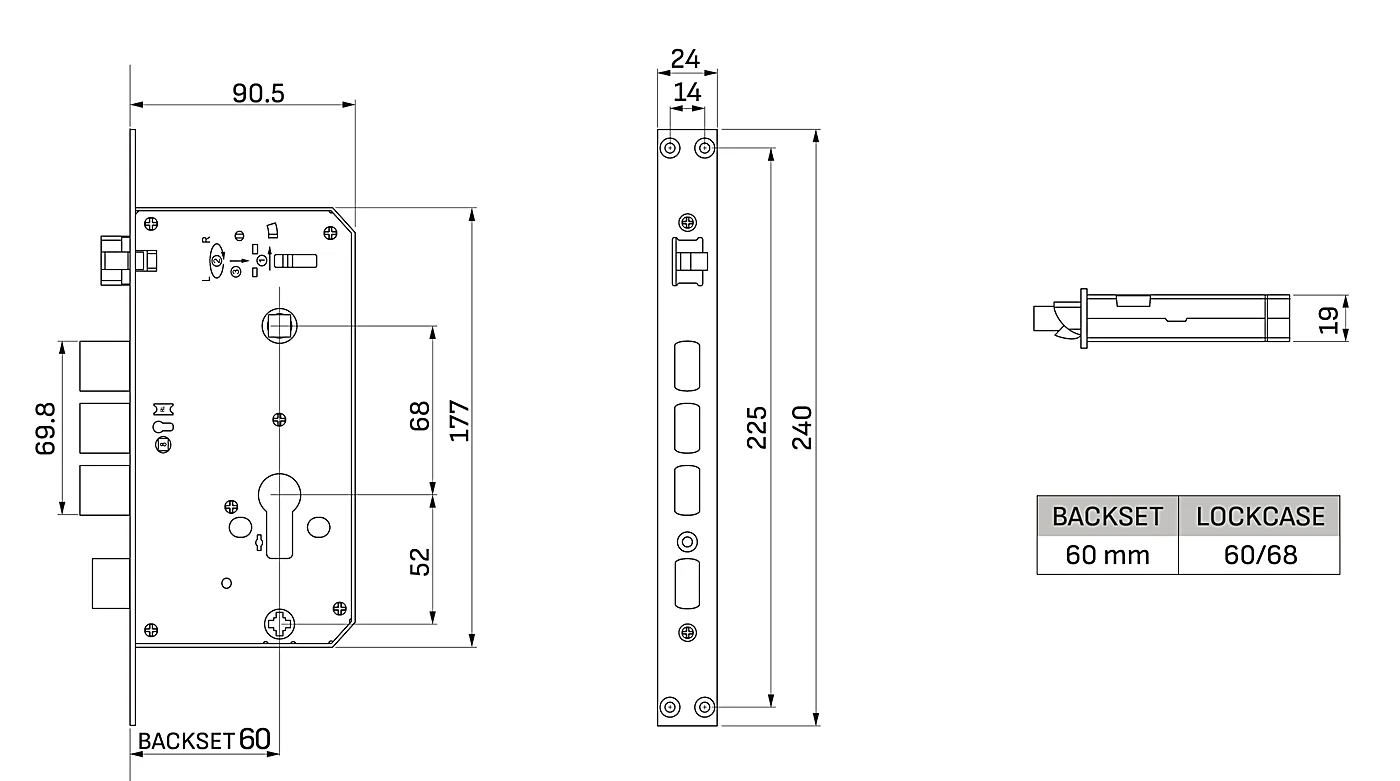

It fits a solid swing door leaf 35–55 mm thick with a 60 mm or 70 mm backset mortise pocket — which covers most Malaysian wooden and aluminium entrance doors. The lock case is 90.5 × 177 mm (100 mm overall) with 68/52 mm centres, and the deadbolt throws 19.7 mm.
It is not for three things, and we would rather say so here than after you have paid: fire or smoke doors (fire Grade 0), fully rain-exposed doors (corrosion Grade 0 — undeclared), and metal grill gates (no solid leaf to hold the mortise case). If any of those is your situation, read the grill-door guide or tell us and we will quote something else.

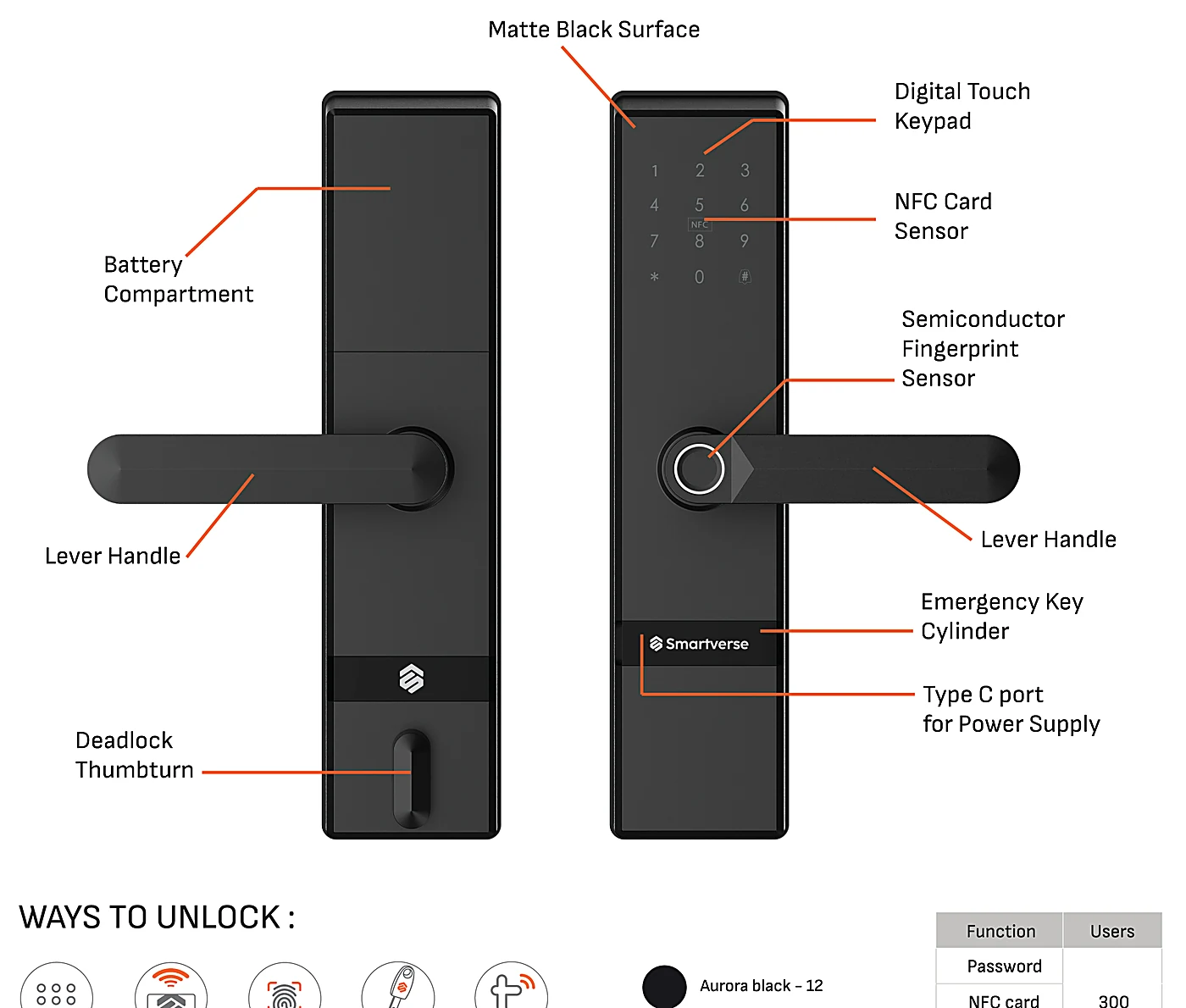

Five ways in, and one of them needs no power at all
Everyone in the household gets the method that suits them. We set up at least two per person before we leave, because a single method is a single point of failure.
-

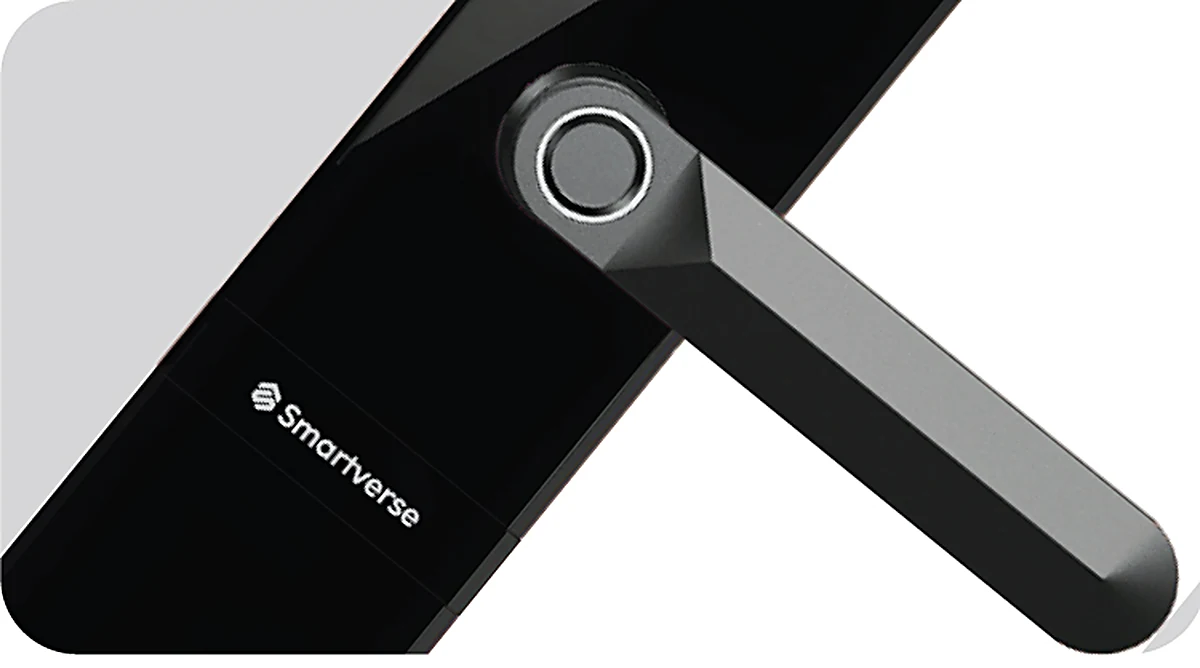

FingerprintSemiconductor reader. Reads less reliably on wet, very dry or worn fingers — a real limitation of every sensor of this type. -

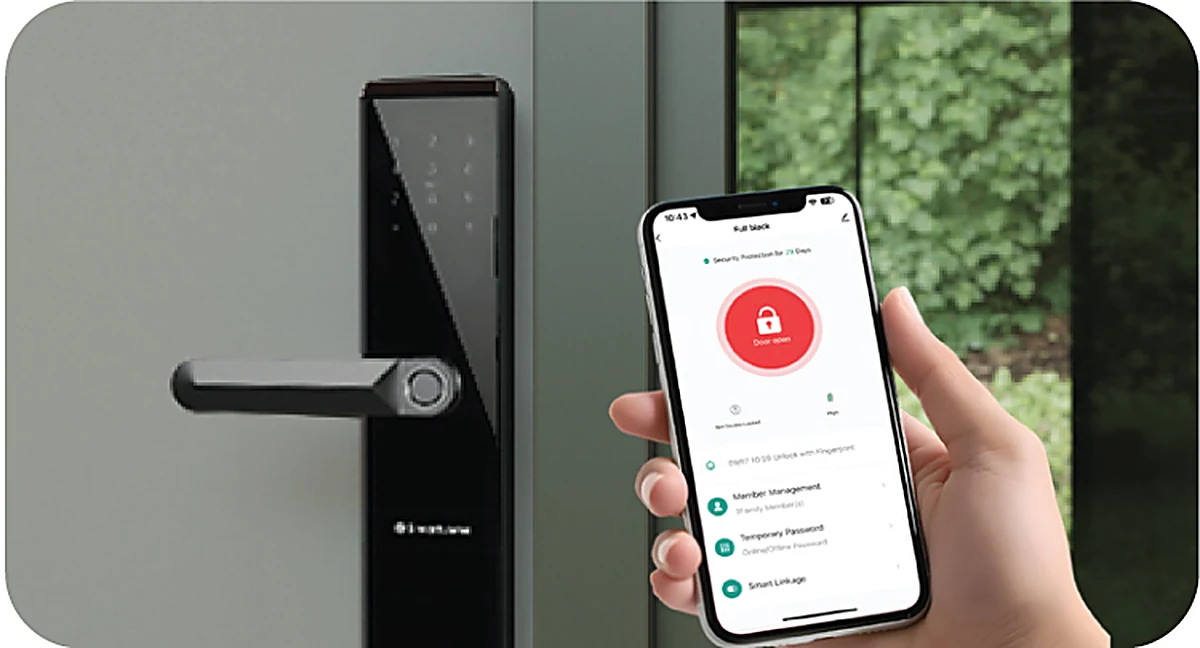

PIN, card and appKeypad PIN with anti-peep padding to 29 digits, NFC card, and the Smartverse App over Wi-Fi 2.4 GHz or Zigbee. -
Mechanical keyA real key override that works with the batteries completely flat. Keep it somewhere that is not inside the house. -

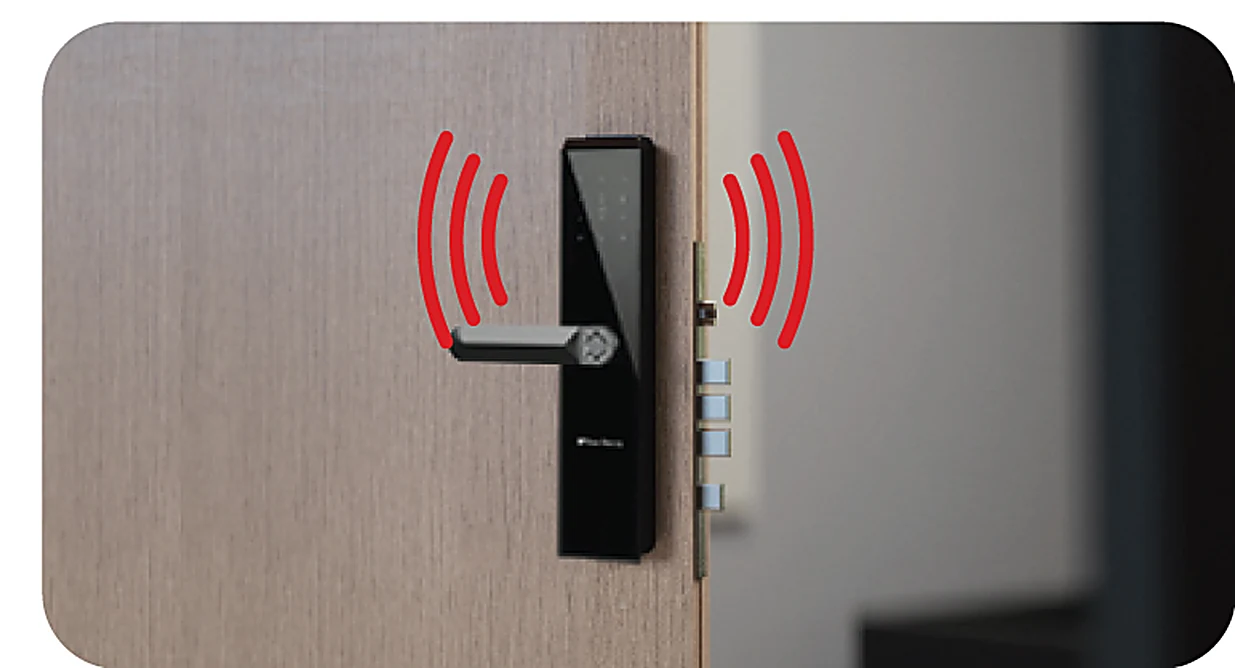

AlertsAnti-theft alarm and door-ajar warning, with a record of who came in and when via the app.
“What happens when the battery dies?”
The most-asked question about digital locks in every language we checked. Here is the actual procedure.
-
1
It warns you first Low battery is flagged days ahead, not minutes. It does not die silently.
-
2

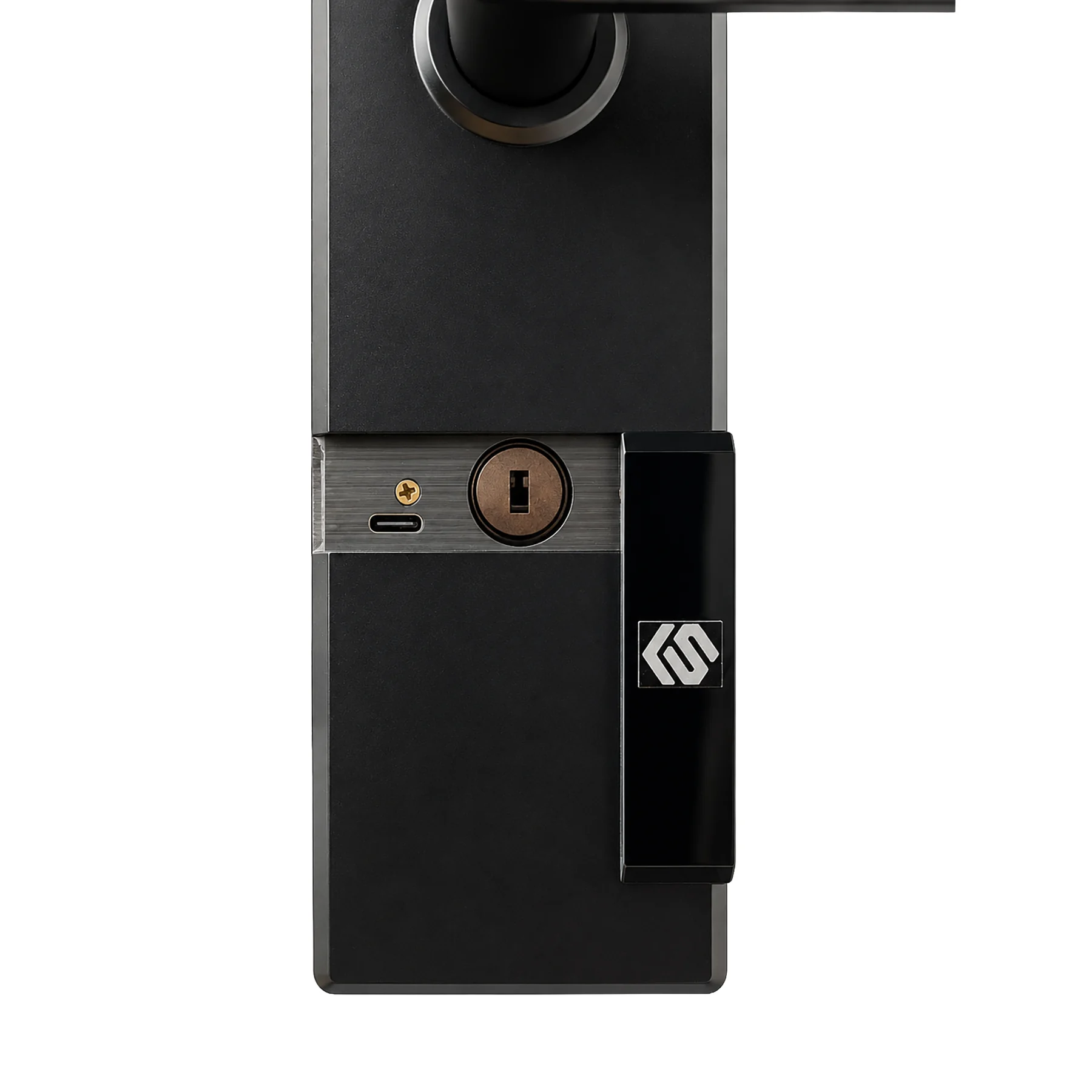

Mechanical key Works with zero power. This is why we insist you keep the emergency key outside the house.
-
3
USB-C emergency power Flat and no key? Any normal power bank on the outside panel powers it long enough to open.
-
4
We come out Still locked out? Lockouts are our day job — a verified locksmith attends.
Runs on 4×AA alkaline. Travelling for a month or more? Change them before you fly.
What the test report actually says
Most smart-lock listings claim “military grade” and cite nothing. This one has a real report, so here is every digit in plain English — including the three that are not flattering.
BS EN 14846:2008 classification 2B40-0100 — result: complied
Three samples were submitted to SIRIM QAS International and tested between 6 May and 19 June 2026. The lock met every applicable mechanical requirement. Each digit is a separate declaration, and a 0 means “not declared or not tested” — not “failed”:
-
2
Category of useOffice-door duty — some chance of misuse
-
B
Durability100,000 cycles, latch and deadbolt — passed
-
4
Door massDoors to 100 kg, ≤25 N closing force
-
0
Fire / smoke doorsNot intended for fire door assemblies
-
0
SafetyNo safety requirement applicable
-
0
Corrosion & humidityNo defined resistance declared
-
1
SecurityMinimum grade, no drill resistance
-
19.7
Deadbolt projectionMillimetres, fully thrown
Source: SIRIM QAS International Sdn. Bhd. Test Report No. 2026MA0740, issued 30 June 2026. A sample of this model was tested; the report covers the samples submitted. MyLock is not the applicant for that report and does not use the SIRIM mark.
Full specification
Everything we can state from the manufacturer’s spec sheet and the SIRIM report. Where the two disagree we say so rather than pick the prettier number.
| SKU | SVDLME001BK (also branded CL-M-SV, “M Series — Semi Medium”) |
|---|---|
| Type | Semi-automatic mortise lock, lever handle |
| Finish | Matte black |
| Door thickness | 35–55 mm |
| Backset | 60 mm per the brochure; the SIRIM drawing shows both 60 mm (6068) and 70 mm (7068) — we confirm which on site |

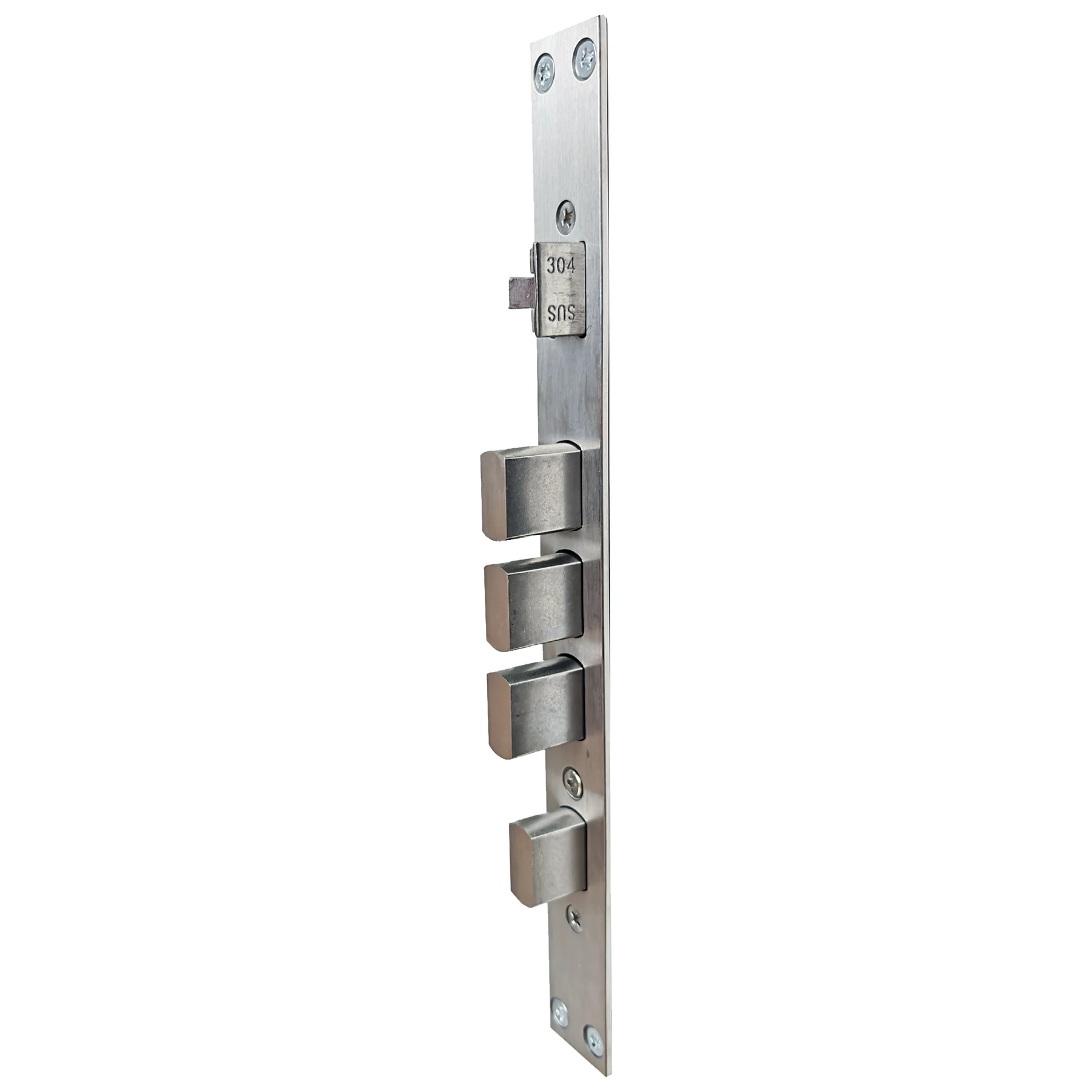

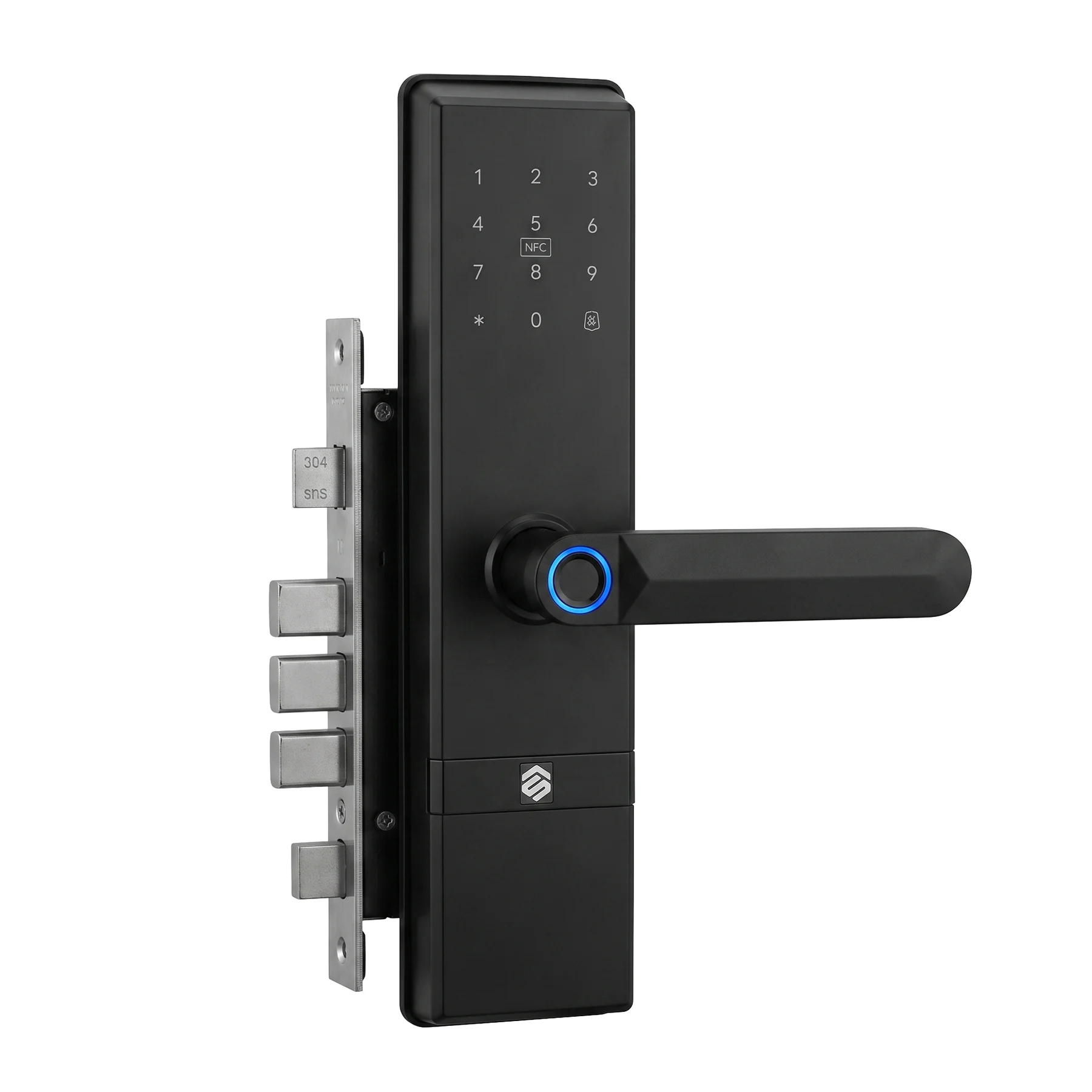

| Lockcase | 90.5 × 177 mm (100 mm overall), 68/52 mm centres, SS304, 3-layer with 5 latches |
| Deadbolt projection | 19.70 mm fully thrown |

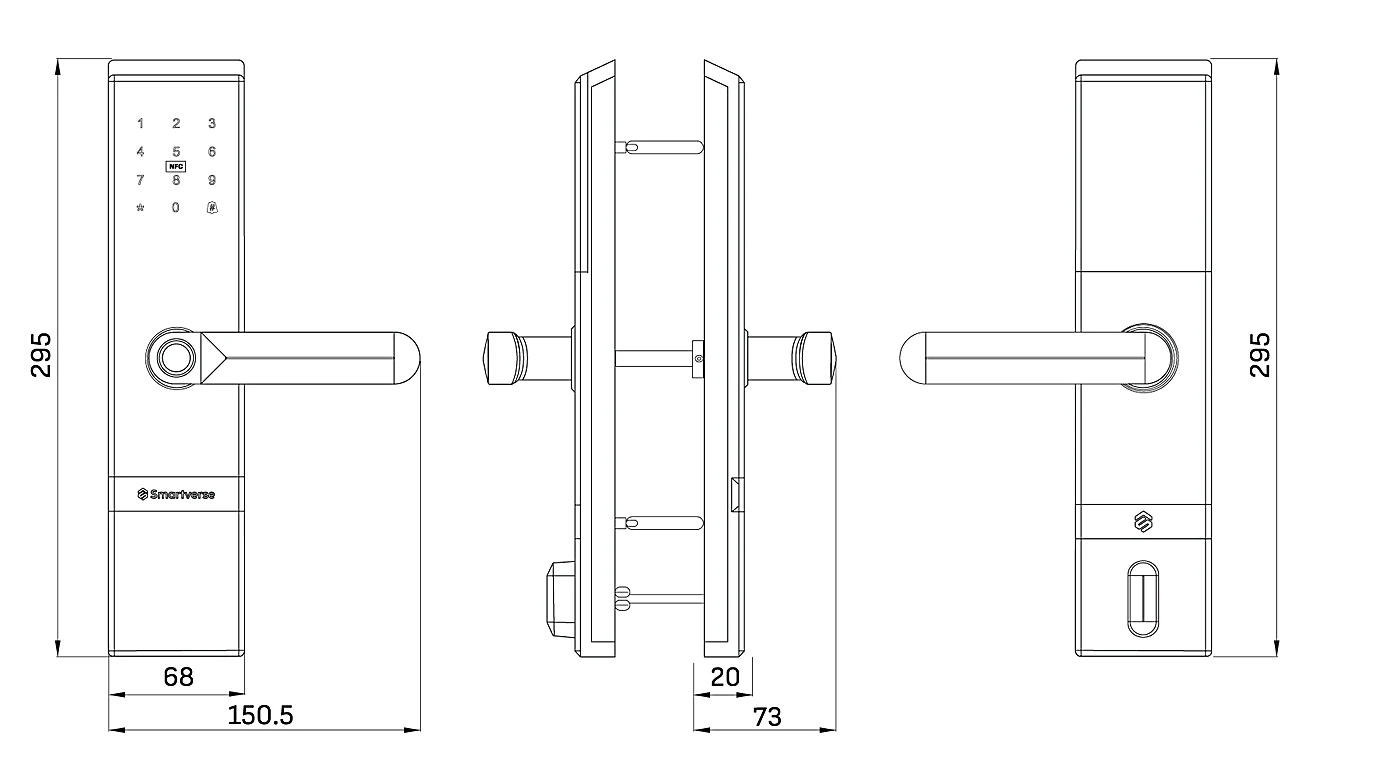

| Panel size | 68 × 293 × 21.5 mm excluding handle; 155.2 × 293 mm including handle |
| Projection | 67.2 mm internal · 73 mm external |
| Faceplate | 24 × 240 mm |
| Unlock methods | Semiconductor fingerprint · PIN keypad · NFC card · Smartverse App · mechanical emergency key |
| Users | 300 accounts — 9 administrators + 291 general |
| Capacity per method | Password 300 · NFC card 300 · fingerprint 100 |
| Anti-peep PIN | Pad the real PIN with random digits up to 29 total |
| Connectivity | Wi-Fi 2.4 GHz + Zigbee |
| App / platform | Smartverse Hub with the Smartverse App · also works with Tuya (these are Tuya-platform locks). Home Assistant badge on the manufacturer spec sheet |
| Power | 4×AA alkaline, plus USB-C emergency power input |
| Setup languages | 9 |
| Standard | BS EN 14846:2008 — classification 2B40-0100, complied (SIRIM QAS report 2026MA0740) |
| Fire door rated | No — fire Grade 0, not declared |
| Corrosion rated | No — Grade 0, not declared |
| Warranty | 2 years |
We supply it and we fit it
Buying the lock was never the hard part. On Malaysian forums people ask strangers for an installer contact — this is the part we exist for.
-
Before you pay
Photo check, then a written price
Send a photo of your door. We confirm the leaf thickness and mortise prep, then quote supplied-and-fitted in writing. If the door needs work beyond a normal swap, that goes in the quote — not on the invoice afterwards.
- No deposit for a quote
- Enquiries are free
- We say no when the door is wrong for it
-
On the day
Fitted, set up, and explained
A verified technician removes the old lock, fits and aligns this one, and does not leave until every household member is enrolled with at least two ways in.
- Old lock removed and taken away
- Fingerprints, PINs and cards enrolled on the day
- 2-year warranty, handled locally by us
Questions people actually ask about this lock
Worded the way they arrive.
-
My door is 35 mm thick — is that too thin?
No, 35 mm is the bottom of the supported range, so it fits. Below 35 mm this is the wrong model and the narrow-stile A series is the right family instead.
-
Can I put this on my grill gate?
No. It needs a solid leaf to house the mortise case, and its corrosion rating is undeclared so it should not sit in the rain. The grill-door guide explains what does work.
-
My condo door is fire rated. Can you fit it anyway?
We will not. Fire is Grade 0 — not declared — and fitting an unrated lockset to a certified fire door can invalidate that door’s rating and breach your building’s fire strategy. Ask management for the door schedule; if it is a fire door, we will quote a fire-rated alternative instead.
-
Does it need Wi-Fi to work?
No. Fingerprint, PIN, card and key all work with no network at all. Wi-Fi and Zigbee are only for app control, remote PINs and the access log. If your internet drops, the lock keeps working.
-
Which app do I install, and is it a Tuya lock?
Both answers are the same answer. Day to day you use the Smartverse App, paired through the Smartverse Hub — the Hub is the physical gateway, the App is what goes on your phone, and people mix the two names up constantly. Underneath, these are Tuya-platform locks, so if your house is already on Tuya they will pair there too. The manufacturer’s spec sheet also carries a Home Assistant badge for a self-hosted setup. We pair it and set up your fingerprints and PINs with you on the day, and we do not leave until at least two people in the house can open the door.
-
How many fingerprints can I store?
300 users in total — 9 administrators plus 291 general — shared across fingerprints, PINs and NFC cards. More than any household needs, and enough for a small office.
-
Can someone see my PIN and reuse it?
The keypad accepts padding: type random digits around your real PIN up to 29 characters and it still opens. It makes shoulder-surfing far harder without you memorising anything new.
-
How much is it including installation?
We quote supplied-and-fitted in writing before we start, because that is the number that matters. It depends on your door, so the photo check comes first. No deposit, and the enquiry is free.
Dalam Bahasa Melayu
-
BMKunci ini sesuai untuk pintu setebal berapa?
Pintu padu 35–55 mm dengan lubang mortis backset 60 mm atau 70 mm — merangkumi sebahagian besar pintu kayu dan aluminium di Malaysia. Ia tidak sesuai untuk pintu rintangan api, pintu yang terdedah kepada hujan, atau pintu grill besi.
-
BMKalau bateri habis, macam mana nak masuk?
Kunci beri amaran beberapa hari lebih awal. Ada kunci kecemasan mekanikal yang berfungsi tanpa kuasa, dan port USB-C di panel luar membolehkan power bank menghidupkannya sementara. Simpan kunci kecemasan di luar rumah.
-
BMBerapa harga termasuk pemasangan?
Kami beri harga bertulis termasuk pemasangan sebelum kerja bermula. Hantar gambar pintu melalui WhatsApp — kami sahkan kesesuaian dahulu. Pertanyaan adalah percuma.
中文
-
ZH这把锁适合多厚的门？
适合 35–55 mm 的实心门扇，锁孔中心距（backset）60 mm 或 70 mm， 涵盖马来西亚大部分木门与铝门。不适合防火门、完全露天淋雨的门，以及外面的铁门。
-
ZH没电了怎么开门？
电量低时会提前数天提示。配有机械应急钥匙，完全没电也能开；外面板另有 USB-C 应急供电口， 用一般行动电源即可临时供电。应急钥匙请放在屋外。
-
ZH需要连 Wi-Fi 才能用吗？
不需要。指纹、密码、卡片和钥匙在完全没有网络的情况下都能正常开锁。 Wi-Fi 与 Zigbee 只用于手机远程控制、临时密码和开门记录。
-
ZH安全等级如何？
有真实第三方报告：BS EN 14846:2008，分级 2B40-0100。耐用度 10 万次循环通过； 但安全等级为 1（最低级，无防钻），防火与防腐蚀均为 0（未申报）。 它是门禁便利型产品；若您更在意防暴力破坏，请告知，我们另报机械锁具方案。
Send us a photo of your door
A photo settles fit faster than any spec table. We will confirm whether this is the right model, quote it supplied and fitted in writing, and tell you if a different series suits your door better.
