F Series Full-Auto Digital Door Lock
SVDLFE001BK · push-pull full auto · matte black
The one that locks itself. Push or pull to open; the moment the door shuts behind you the motor drives the deadbolt home. It is the flagship: the tallest and most expensive lock in the range, the only one with a camera built into the outside panel, and the only one that opens to a face scan or a palm.
Supplied & fitted
RM3,080 is the Smartverse recommended retail price for this model and it includes installation by a verified MyLock technician.
We confirm the fit from a photo before we book anyone
Some doors need extra work — a different backset, a thicker leaf, a frame that needs packing — and that changes the number. Send a photo and we confirm in writing what it costs on your door. No deposit for a quote, and if your door is not worth fitting to, we will tell you.
- Fits door thickness35–55 mm
- LockingFull auto — motorised deadbolt
- Ways to openFace scan · palm vein · fingerprint · PIN · NFC · app · key
- PowerRechargeable lithium-ion 4,200 mAh, USB-C

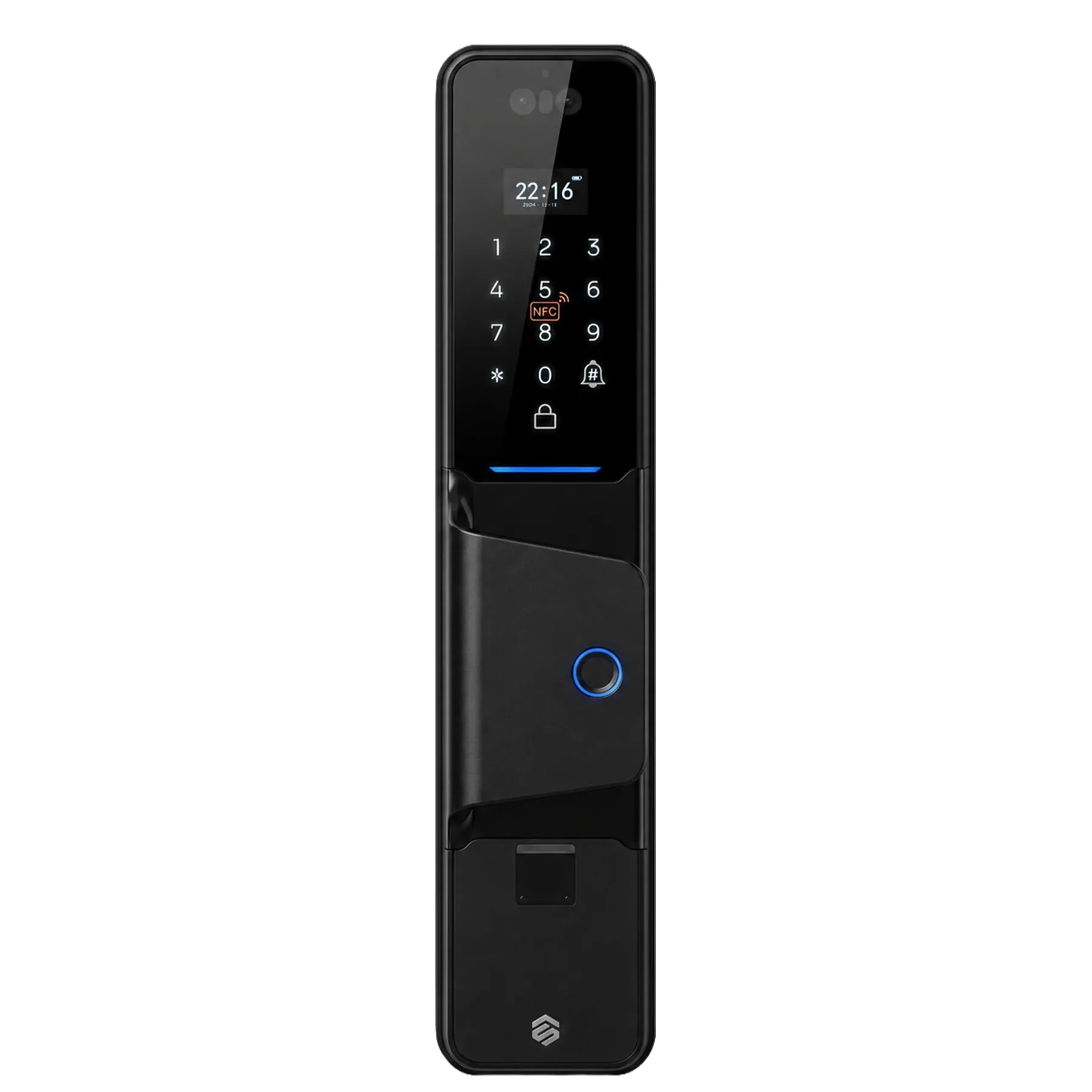

- Camera in outer panelYes — face scan and doorbell video
- BiometricsFace scan + palm vein — the only model in the range with either
- Users200 (9 admin + 191 general)
- Independently testedNo EN 14846 report — and the reason is commercial, not technical. See below.
- Suitable for fire doorsNo
- Suitable for exposed outdoor doorsNo
- Warranty2 years, honoured locally
Is the full auto worth more than double the M Series?
Honestly — only for two reasons. You are paying for auto-locking and for the camera panel. Everything else the lock does, the M Series does too, for RM1,399 fitted.
Buy the F Series if someone in your household genuinely forgets to lock up — teenagers, elderly parents, a maid coming and going — or if you want to see who is at the door from the panel. If your family locks the door reliably, the M Series is the better buy and we will say so on the phone.
What “full auto” actually changes
It is one behaviour, and it is the whole reason this model exists.
-
1
The deadbolt throws itselfClose the door and a motor drives the bolt out. There is no handle to lift and nothing to remember.
-
2

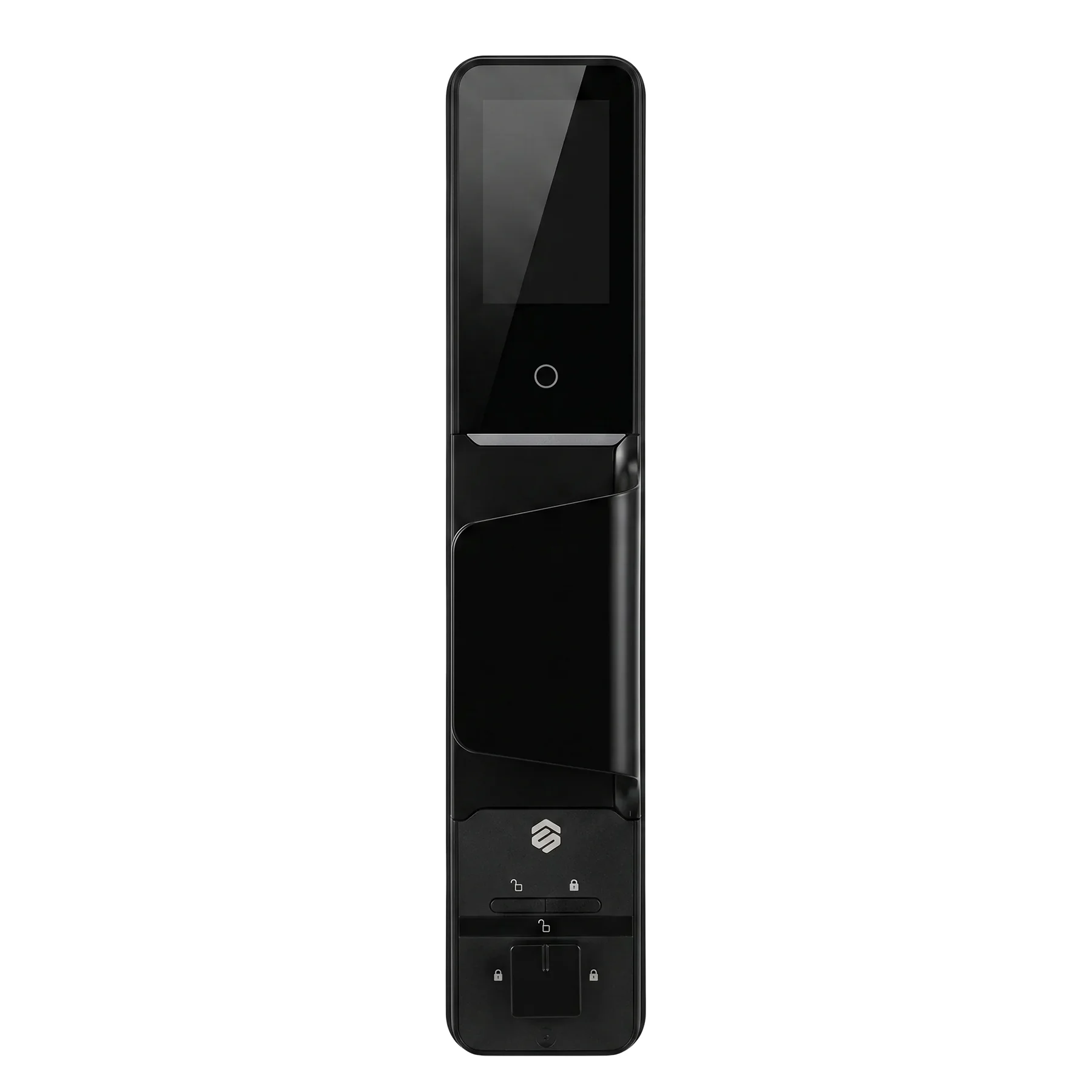

Push-pull to openFrom inside, grab the handle and pull — the lock retracts everything at once. No twisting a thumbturn with your hands full.
-
3
A motor is a moving partThe honest trade-off. A semi-auto lock has less to go wrong. In exchange you get a door that is never accidentally left unlocked.
-
4
Battery is a pack, not AA cellsRechargeable 4,200 mAh lithium-ion. You recharge it over USB-C rather than buying batteries — but you cannot fix a flat one at 11 pm with cells from the shop downstairs.
The camera in the outer panel — what we will and will not claim
This is the feature people ask about, and it is the one where the paperwork does not fully agree.
What the manufacturer’s catalogue documents: face scan for 100 users and palm vein for 100 users as unlocking methods, real-time video and a snapshot when the doorbell is pressed, stranger detection, and an automatic locking system. Face recognition on this model is a documented capability, not a claim we are passing along second-hand — and palm vein is a genuinely unusual one to find at this price.
What we still have not measured ourselves: enrolment time, and how the camera behaves in poor light. Ask us and we will tell you exactly where we have got to rather than quote a brochure.
Where every number on this page came from
Most smart-lock listings mix the manufacturer’s marketing with the seller’s guesswork and label the result a specification. Here is the provenance of ours, line by line, including the gaps.
Provenance for the SVDLFE001BK
-
A
Our own photographsEvery product image on this page. Camera module, touchscreen, USB-C port, key override, mortise — all visible in shots we took ourselves.
-
B
Manufacturer datasheetBattery, user count, fake-PIN length, materials, network, door thickness. Taken from the OEM specification for this model.
-
C
SmartverseFace recognition, the 2-year warranty and the price.
-
—
Not verifiedBackset and lockcase dimensions; face-recognition performance. We will not publish a number we have not seen.
Why the most expensive lock in the range is the one without a test report
It looks backwards. The explanation is commercial, and we would rather give it to you than let you draw the obvious wrong conclusion.
So read the blank correctly. It means not tested, not tested and failed. We are not going to tell you this lock would pass, because nobody has run it — and we are not going to imply the M’s report covers it either, because it does not.
If paperwork is what you need — for a tender, a spec, or your own peace of mind — buy the M Series instead, and we will say so on the phone. If what you want is auto-locking, a face scan and a camera, this is the one, and the missing report is a fact about procurement budgets rather than about the lock.
Full specification
Everything currently confirmed for the SVDLFE001BK. Rows marked pending are genuinely pending — we would rather leave a gap than fill it with a number from a similar-looking product.
| SKU | SVDLFE001BK |
|---|---|
| Body style | Mortise, motorised full-auto, push-pull |
| Door thickness | 35–55 mm |
| Suitable doors | Wooden swing, aluminium swing · left and right hand |
| Unlock methods | Face scan · palm vein · fingerprint · PIN keypad · NFC card · Smartverse App · mechanical key |
| Users | 200 accounts — 9 administrators + 191 general |
| Capacity per method | Face scan 100 · palm vein 100 · password 200 · NFC card 200 · fingerprint 50 |
| Anti-peep PIN | Fake password up to 12 digits |
| Network | Wi-Fi 2.4 GHz |
| App / platform | Smartverse Hub with the Smartverse App · also works with Tuya (these are Tuya-platform locks) |
| Power | Lithium-ion 4,200 mAh 7.4 V, rechargeable |
| Low-battery warning | 7.0–7.2 V |

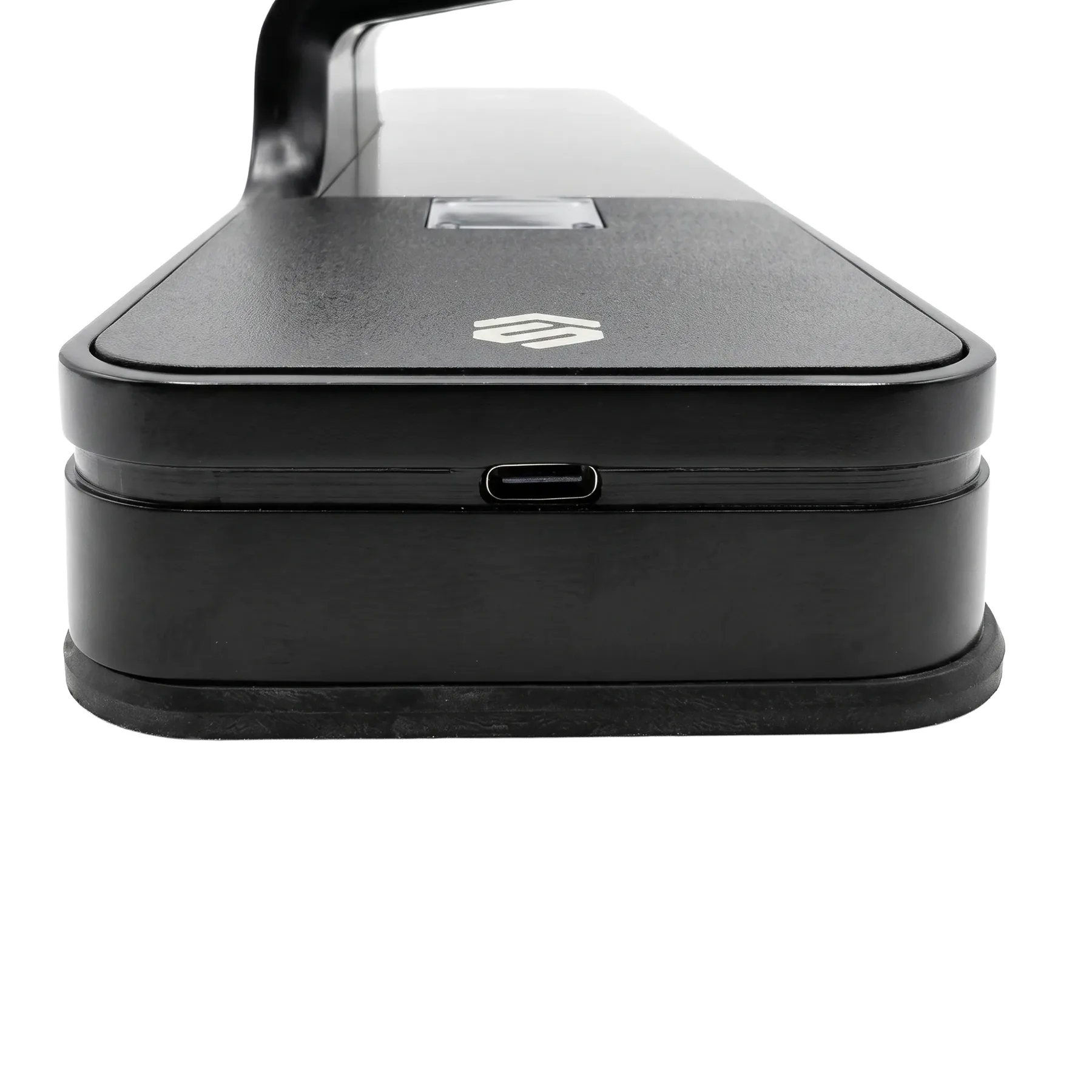

| Emergency power | USB Type-C |
| Lock body | 3-layer, 5 locking latches |
| Materials | Aluminium alloy ADC 12 panel · stainless steel 304 lockcase |
| Camera | Panel camera — face scan, real-time video and a snapshot when the doorbell is pressed |
| Also documented | Automatic locking system · stranger detection · LED screen · one-time passwords and guest limits · tamper alert · password length 6–12 digits |
| Backset / lockcase dimensions | Not published by Smartverse — we measure your door before quoting |
| Independent test report | None held for this model |
| Warranty | 2 years |
We supply it and we fit it
This is the part most sellers leave to you. On Malaysian forums people ask strangers for an installer contact — because buying the lock was never the hard bit.
-
Before you pay
Feasibility check, then a written price
Send a photo of your door. We confirm the body style fits, and quote supplied-and-fitted in writing before anyone is dispatched. If your door is not worth fitting to, we say so.
- No deposit for a quote
- Price agreed in writing first
- We will tell you when the answer is no
-
On the day
A verified technician, not a first-timer
Every technician on the network is verified before taking jobs. If a job needs a skill we are not confident about, we will not send someone to learn on your door.
- Old lock removed and disposed of
- Set up with your fingerprints and PINs before we leave
- 2-year product warranty, honoured locally
Questions people actually ask about this lock
-
Does it lock itself even if I just pull the door to?
Yes — that is the point of it. The motor senses the door is closed and throws the deadbolt. If you want to stop that behaviour temporarily, there is a manual mode.
-
How long does the battery last, and what happens when it dies?

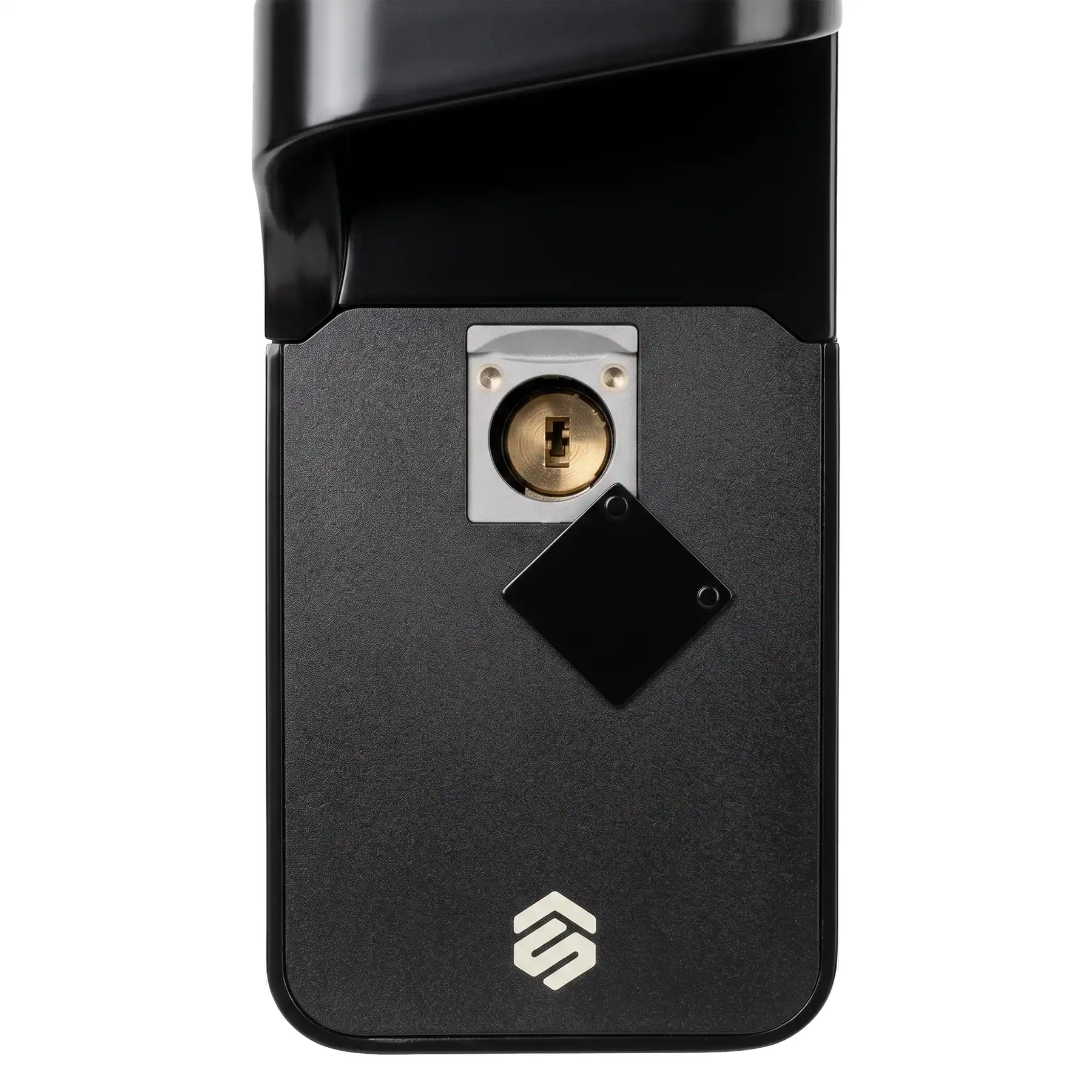

It is a 4,200 mAh rechargeable pack rather than AA cells, and it warns you well before it stops. If it does go flat, a normal power bank on the USB-C port under the outside panel gives you enough power to open the door — and there is a mechanical key override behind the cover. Keep that key somewhere that is not inside the house.
-
Can I put it on my grill gate?
No. It needs a solid door leaf to hold the mortise case, and it has no declared weather rating. If you have a grill in front of your main door, read the grill-door guide first — the answer there is usually a digital lock on the sheltered main door and a good mechanical lock staying on the grill.
-
My condo door is fire rated. Can you fit it anyway?
We will not. No lock in this range is declared for fire or smoke door assemblies. Fitting one to a fire door can void the door’s certification and, in a fire, that matters more than convenience. Tell us and we will quote a fire-rated lockset instead.
-
Which app do I install?
The Smartverse App, paired through the Smartverse Hub. Worth knowing which is which before you go looking: the Hub is the physical gateway that sits in your home, the App is what you install on your phone. Because these are Tuya-platform locks they will also pair with Tuya if that is already your ecosystem. We install and pair it with you on the day rather than leaving you with a box and a QR code.
-
Is it cheaper than this anywhere else?
Possibly on a marketplace, for the box on its own. RM3,080 is the recommended retail price with installation included and a technician who sets it up with your fingerprints before leaving. That is the part a marketplace listing cannot ship you.
Send us a photo of your door
It is the fastest way to a real answer. We will tell you which model fits, what it costs supplied and fitted, and whether we think you should buy a different one.
