A Series Aluminium Swing Door Lock (Narrow Stile)
SVDLAI002BK · narrow-stile lever · aluminium swing doors
The same aluminium-door thinking as the sliding model, but with a lever instead of a pull handle — for a hinged aluminium or glass-framed door whose stile is far too narrow to take a normal digital lock panel.
Supplied & fitted
RM1,480 is the Smartverse recommended retail price for this model and it includes installation by a verified MyLock technician.
We confirm the fit from a photo before we book anyone
Some doors need extra work — a different backset, a thicker leaf, a frame that needs packing — and that changes the number. Send a photo and we confirm in writing what it costs on your door. No deposit for a quote, and if your door is not worth fitting to, we will tell you.
- Fits door thickness26–55 mm — thinner floor than the M Series
- Body styleNarrow-stile escutcheon, lever handle
- Suitable doorsAluminium single-swing · glass-framed · wooden
- Ways to openFingerprint · PIN · NFC card · app · mechanical key
- Power4×AA, plus USB-C emergency power
- Users300 (9 admin + 291 general)
- Ingress ratingIP66 per the manufacturer’s datasheet — read the note below
- Suitable for fire doorsNo
- Independently testedNo EN 14846 report held for this model
- Warranty2 years, honoured locally
Which aluminium door does this one go on?

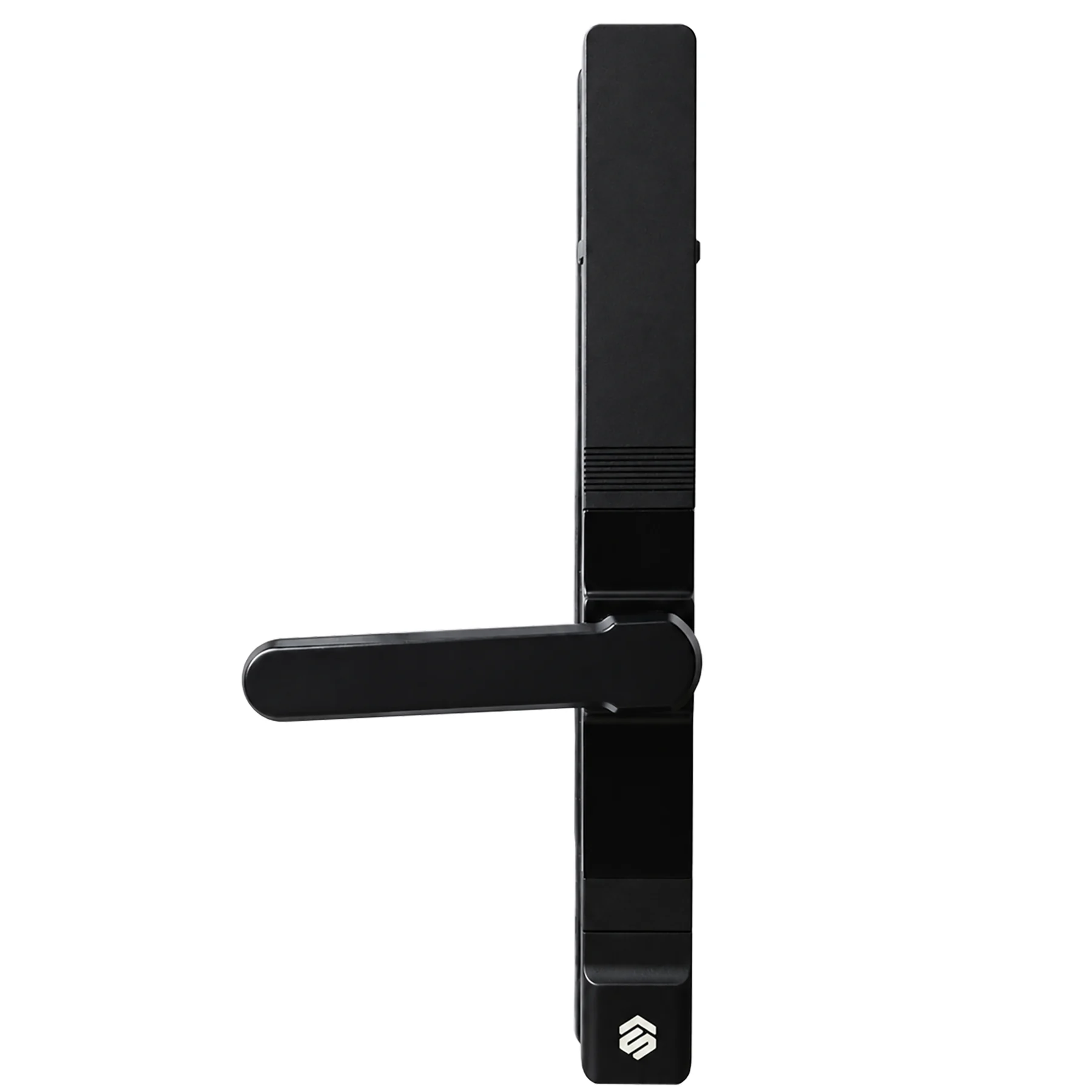

The hinged one. If your aluminium or glass-framed door swings open on hinges, this is the model — the lever throws the latch the way an ordinary handle does, and the whole escutcheon is narrow enough to sit on a stile that would never take a full panel.
If the door slides, you want the SVDLAI001BK instead — it has the pull handle and the twin hook bolts a sliding leaf needs. Same family, same price bracket, genuinely different hardware. Sending us a photo takes ten seconds and removes the guesswork.
Why a narrow stile changes everything
This is the constraint that rules out most digital locks on Malaysian aluminium doors.
-
1
There is almost no metal to mount onAn aluminium or glass door is mostly glass. The frame beside it — the stile — can be as little as a few centimetres wide. A standard escutcheon simply overhangs the glass.
-
2
The panel here is deliberately slimTall and narrow, so it lands on the stile rather than across the glazing bead.
-
3
It takes a thin leafFrom 26 mm, against 35 mm for the M Series. Aluminium doors are frequently thinner than wooden ones.
-
4
We measure before we promiseMinimum stile width is not published for this model. We are not going to tell you it fits until someone has put a tape across your frame.
About that IP66 rating — read this before you put it outside
It is a real rating. It is not the same rating people assume it is.
What it does not mean: it is not a corrosion or humidity durability declaration. Different test, different question. We hold an independent EN 14846 report for the M Series only, and this model does not have one.
So, practically: a sheltered entrance, a covered walkway, an office or shopfront door under cover — fine. A leaf taking direct driving rain all day — we would rather not, and we will say so before quoting.
Where every number on this page came from
Most smart-lock listings mix the manufacturer’s marketing with the seller’s guesswork and label the result a specification. Here is the provenance of ours, line by line, including the gaps.
Provenance for the SVDLAI002BK
-
A
Our own photographsThe escutcheon, the lever, the fingerprint reader, the emergency key cylinder and the USB-C port under the cover — all shot on our bench.
-
B
Manufacturer datasheetDoor thickness, users, battery, network, materials, fake-PIN length, languages and the IP66 rating.
-
C
SmartverseThe SKU, the 2-year warranty and the price.
-
—
Not verifiedMinimum stile width and long-term corrosion behaviour. Neither is published, and both matter.
Full specification
Everything currently confirmed for the SVDLAI002BK. Rows marked pending are genuinely pending — we would rather leave a gap than fill it with a number from a similar-looking product.
| SKU | SVDLAI002BK |
|---|---|
| Body style | Narrow-stile aluminium escutcheon, lever handle |
| Door thickness | 26–55 mm |
| Suitable doors | Aluminium single-swing and sliding · glass-framed · wooden · left and right hand |
| Unlock methods | Fingerprint · PIN keypad · NFC card · Smartverse App · mechanical key |
| Users | 300 accounts — 9 administrators + 291 general |
| Capacity per method | Password 300 · NFC card 300 · fingerprint 100 |
| Anti-peep PIN | Fake password up to 29 digits |
| Setup languages | 9 |
| Network | Wi-Fi 2.4 GHz |
| App / platform | Smartverse Hub with the Smartverse App · also works with Tuya (these are Tuya-platform locks) |
| Power | 4 × AA alkaline |
| Low-battery warning | 4.8–5 V |
| Emergency power | USB Type-C |
| Materials | Aluminium alloy ADC 12 panel · stainless steel 304 lockcase |
| Ingress protection | IP66, per the manufacturer’s datasheet |
| Minimum stile width | Not published — we measure your frame before quoting |
| Independent test report | None held for this model |
| Warranty | 2 years |
We supply it and we fit it
This is the part most sellers leave to you. On Malaysian forums people ask strangers for an installer contact — because buying the lock was never the hard bit.
-
Before you pay
Feasibility check, then a written price
Send a photo of your door. We confirm the body style fits, and quote supplied-and-fitted in writing before anyone is dispatched. If your door is not worth fitting to, we say so.
- No deposit for a quote
- Price agreed in writing first
- We will tell you when the answer is no
-
On the day
A verified technician, not a first-timer
Every technician on the network is verified before taking jobs. If a job needs a skill we are not confident about, we will not send someone to learn on your door.
- Old lock removed and disposed of
- Set up with your fingerprints and PINs before we leave
- 2-year product warranty, honoured locally
Questions people actually ask about this lock
-
My door is glass with a thin aluminium frame. Will this fit?
That is precisely the case it is designed for — but the answer depends on how wide the frame beside the glass is, and that is not something we will guess. Photograph the stile with a tape measure across it and send it over.
-
What is the difference between this and the SVDLAI001BK?
Door type. This is the lever, for doors that swing on hinges. The SVDLAI001BK is the pull handle with twin hook bolts, for doors that slide.
-
Can I still get in if the battery dies?

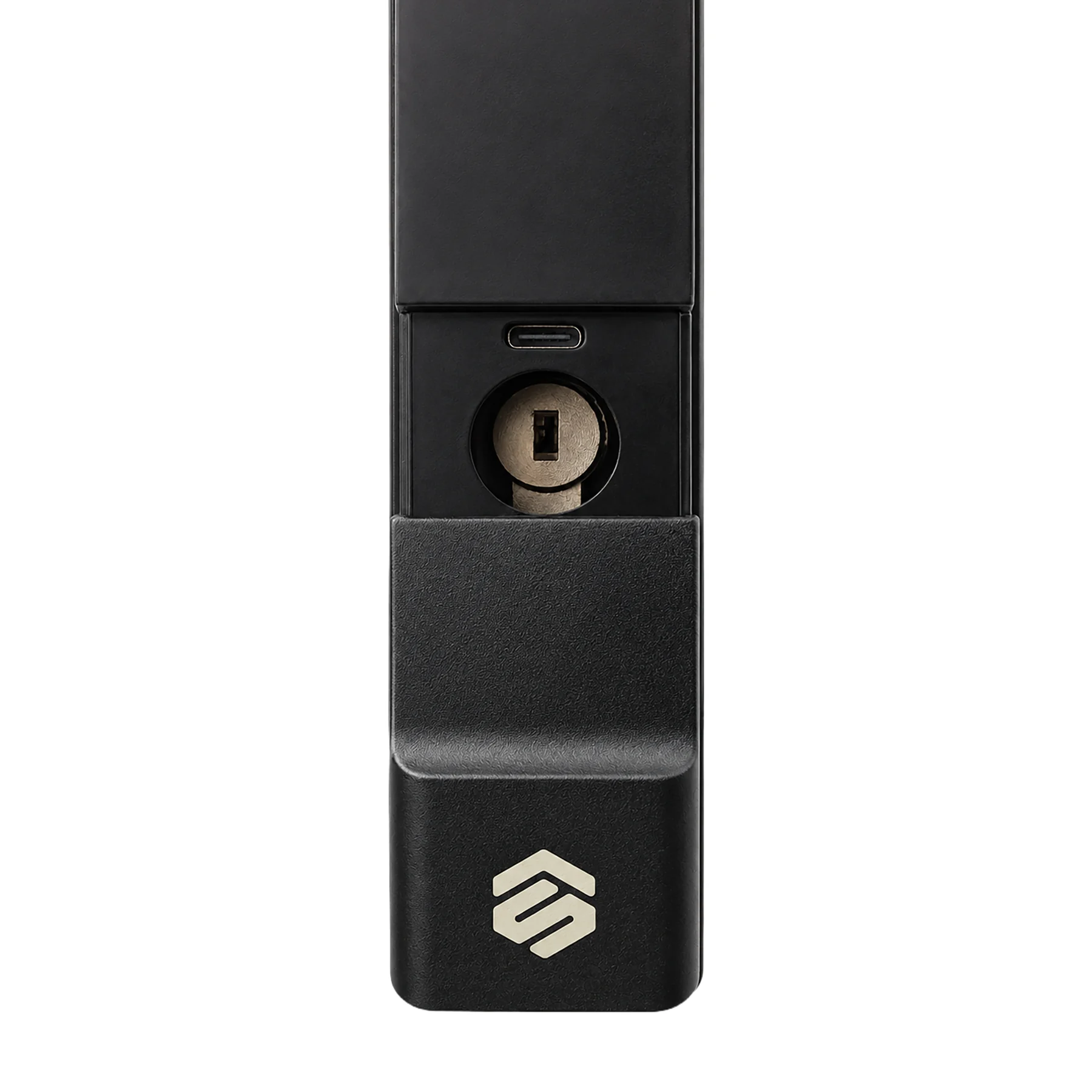

Yes, two ways. There is a mechanical key cylinder under the sliding cover on the outside panel, and a USB Type-C port beside it — a normal phone power bank gives the lock enough power to open. Both are visible in the photographs above. Keep the mechanical key outside the house.
-
Is it suitable for a shop front?
Under cover, yes — it is a common fit for office and retail entrances on aluminium frames. Somewhere fully exposed to weather, no. And if the door is a fire escape route, tell us: this lock is not declared for fire door assemblies.
-
Does it work with a folding door?
No — and we corrected this page when we checked. The manufacturer’s catalogue lists folding doors under the other A-Series model, the SVDLAI001BK pull-handle version, not this lever one. If your door folds, ask us about that model instead. We would rather move you to the right SKU than fit the wrong one and blame the door.
