Description
Need a smaller padlock that is still built heavy-duty? The Vpass VS 40 HD is a 40 mm lock for cabinets, lockers, toolboxes, small gates and grilles where a 50 mm body will not fit the hasp — choose a single lock, or set up Keyed-Alike (one key opens all) or Master-Keyed security across your premises.
Technical specifications
| Size | 40 mm heavy-duty padlock |
|---|---|
| Body | Solid brass, nickel-chrome finish — 41(W) × 36(H) × 20(thk) mm |
| Shackle | 8 mm hardened alloy-steel, manufacturer-rated to resist heavy cutting force |
| Shackle clearance | Normal 24 mm · Long 49 mm |
| Cylinder | 7-disc detainer, rekeyable, stainless-steel internals |
| Keys | 3 brass keys per lock |
| Durability | 200,000+ open/close cycles |
| Warranty | 5-year mechanical warranty |
| Origin | Made in Shah Alam, Malaysia |

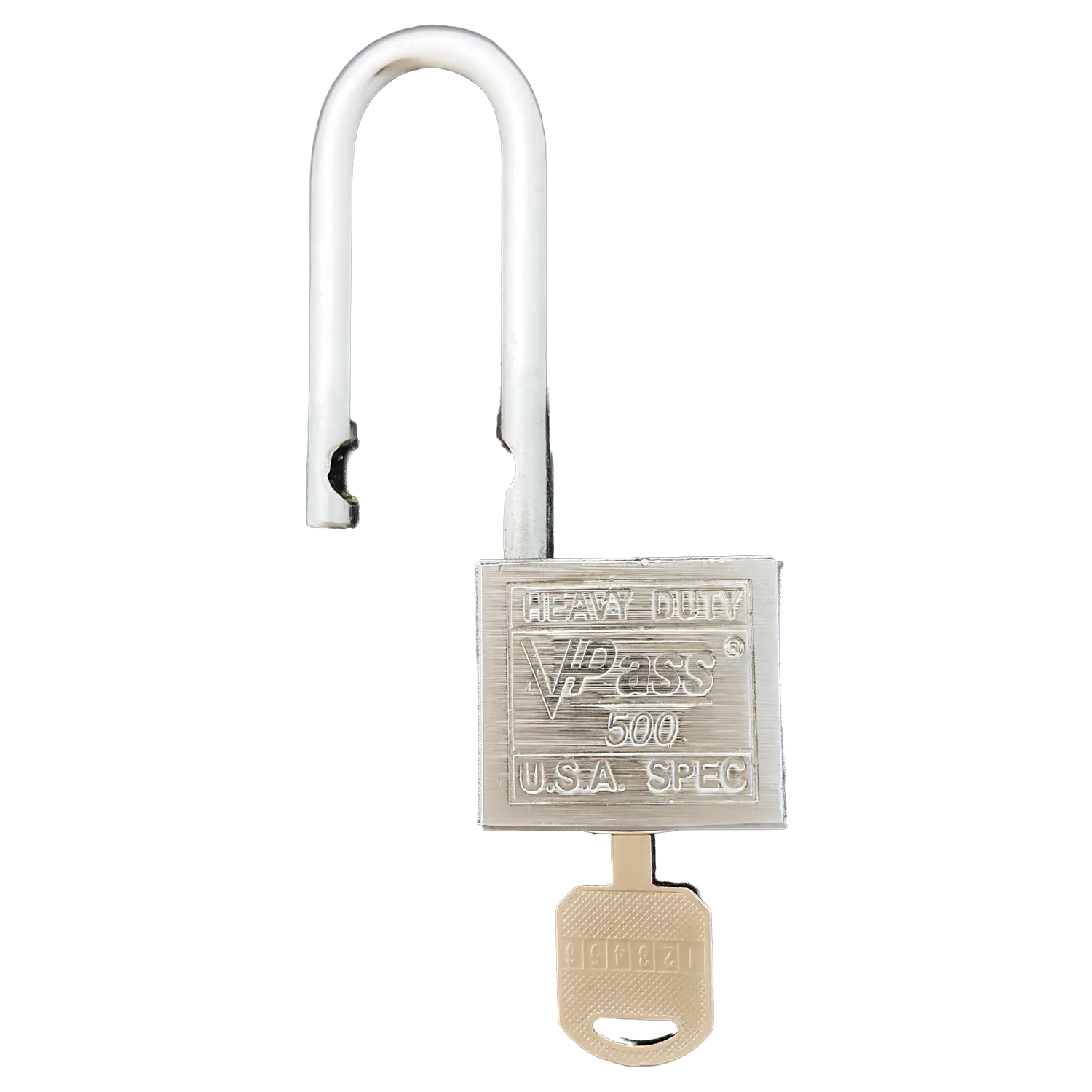

About the photos: they show an earlier production batch. Newer stock carries different lettering on the lock face; the padlock itself is the same VS 40 HD model.
Key system options
- Single — a standalone lock with its own 3 keys.
- Keyed-Alike (KA) — buy a set of 2–6 where one key opens every lock. Ideal for homes and small premises.
- Master-Keyed (MK) — each lock keeps its own key, plus one master key opens them all. Ideal for offices, factories and multi-tenant sites.
Sold & supported by MyLock.my, Malaysia’s locksmith service — backed by our nationwide locksmith network and a 5-year mechanical warranty. Online store marketing by Inpixel Marketing. Made in Shah Alam, Malaysia.
Pros & cons at a glance
- Compact 40 mm body fits hasps, lockers and cabinets that a 50 mm lock will not
- 8 mm hardened alloy-steel shackle on a solid brass body with nickel-chrome finish
- Rekeyable 7-disc cylinder — change the key without changing the lock
- Keyed-Alike and Master-Keyed options for whole-premises control
- 5-year mechanical warranty, 200,000+ cycles, Made in Malaysia
- Thinner shackle than the VS 50 HD — for main gates and maximum cut resistance choose the 10 mm VS 50 HD
- Alloy-steel shackle favours cut resistance over rust resistance — for coastal or constantly-wet spots choose the stainless VS 40 AR
Which Vpass heavy-duty padlock should I choose?
| Model | Shackle / bolt | Rust resistance | Best for |
|---|---|---|---|
| VS 40 HD | 8 mm hardened alloy-steel shackle | Standard | Cabinets, lockers, small gates and grilles |
| VS 40 AR | 8 mm SUS304 stainless shackle | Highest (stainless shackle) | Outdoor gates, grilles, coastal & constantly-wet sites |
| VS 50 HD | 10 mm hardened alloy-steel shackle | Standard | General heavy-duty; maximum cut resistance |
| VAT 50 HD | Monoblock — SUS304 stainless bolt, no exposed shackle | High (stainless bolt) | Roller shutters, sliding gates, containers, warehouse doors |
Product details reviewed by Vince Tan, MyLock.my Technical Team · Last updated 2 October 2026
